As the electrification of heavy-duty trucks accelerates worldwide, charging infrastructure is becoming a critical foundation for logistics fleets, mining operations, ports, and commercial transportation. Unlike passenger EV charging stations, heavy-duty truck charging stations require significantly higher charging power, more robust electrical infrastructure, and greater investment.

Typical charging power for heavy-duty trucks ranges from 300kW to 600kW, with megawatt-level charging expected to become the industry standard in the coming years.

So, what does it take to build a reliable heavy-duty truck charging station?

This guide breaks down the essential components into four key areas: power equipment, civil infrastructure, operational systems, and project compliance.

1. Core Power Equipment: The Heart of the Charging Station

The electrical system represents the largest investment in any heavy-duty charging project. Since truck charging demands megawatt-level power capacity, every component must be carefully designed.

Dedicated Power Transformer

A dedicated transformer is essential for supporting the enormous electrical load.

Compared with conventional passenger EV stations, heavy-duty charging stations often require:New transformer installation;Transformer capacity expansion;Stable high-load operation;Utility-approved grid connection

Planning transformer capacity early is critical to avoiding project delays.

Low-Voltage Distribution Cabinet

The distribution cabinet allocates power from the transformer to every charging unit while ensuring:Stable power distribution；Equipment protection；Operational safety；Flexible future expansion

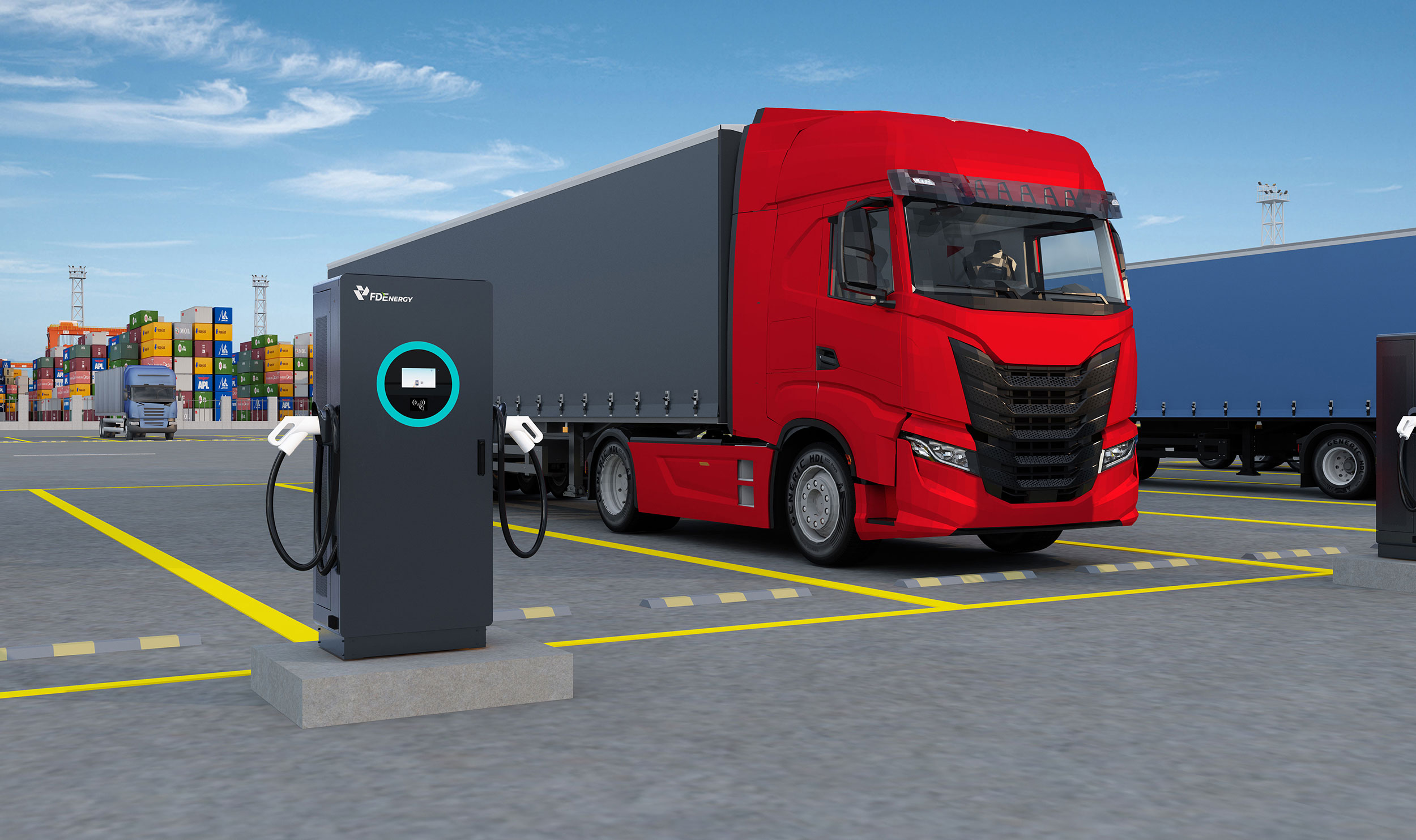

High-Power DC Fast Chargers

The charger itself is the core of the station.

When selecting heavy-duty chargers, several technical specifications deserve special attention:

High Charging Power

Typical output includes：300kW、350kW、400kW、480kW、600kW+

Future charging stations should also consider megawatt charging compatibility.

High Voltage Platform

Heavy-duty electric trucks generally operate on high-voltage battery systems.

Recommended charger specifications include:Up to 1000V DC output；Wide voltage compatibility；High-current continuous output

Dynamic Power Sharing

Modern dual-gun charging systems can intelligently distribute charging power between two vehicles, maximizing charger utilization while reducing waiting times.

High-Current Cable System

Heavy-duty charging involves continuous high-current transmission.

A complete cable system includes:High-voltage cables；Low-voltage power cables；Control cables；Fiber-optic communication cables

Cable sizing, heat dissipation, and long-term reliability are all essential considerations.

2. Civil Construction & Infrastructure: Building a Reliable Foundation

Heavy-duty trucks place far greater demands on site construction than passenger vehicles.

Infrastructure must ensure both operational safety and long-term durability.

Reinforced Ground Construction

The station surface should be constructed using reinforced concrete or heavy-duty asphalt capable of supporting fully loaded trucks over many years.

Parking layout should also consider:Wide turning radius；Clear traffic guidance；Dedicated charging bays；Easy vehicle circulation

Charger Foundations & Collision Protection

High-power chargers are significantly heavier than standard charging equipment.

Each charger should be installed on reinforced concrete foundations with:Heavy-duty anchor bolts；Protective barriers；Steel bollards；Vehicle impact protection

These measures help prevent accidental damage during truck maneuvering.

Cable Trenches & Conduits

Underground cable routing should provide:Mechanical protection；Waterproofing；Easy maintenance；Heat dissipation；Proper cable management significantly improves long-term system reliability.

Canopies & Drainage Systems

Installing canopies offers several advantages:Protection from sun and rain；Improved user experience；Reduced equipment exposure；Longer equipment lifespan

Meanwhile, an effective drainage system helps prevent water accumulation that could damage equipment or interrupt charging operations.

3. Safety & Smart Operation Systems

Reliable charging infrastructure requires much more than hardware.

Safety systems and intelligent operation platforms are equally important.

Fire Protection

Heavy-duty charging stations should include:Fire extinguishers；Fire hydrants；Sand buckets；Emergency fire suppression systems (optional)；Safety should always be designed into the station from the beginning.

Video Surveillance

A modern charging station should provide:Full-site monitoring；High-definition recording；Remote viewing；Event traceability

This improves both operational management and security.

Emergency Stop System

Emergency stop buttons should be clearly visible and easily accessible throughout the station to ensure rapid response in abnormal situations.

Smart Charging Management Platform

An intelligent management system enables operators to monitor and manage the entire charging network remotely.

Typical functions include:User management；Billing；Order management;Equipment monitoring;Fault alarms;Remote diagnostics;Energy statistics

These capabilities reduce operating costs while improving efficiency.

Flexible Payment System

Supporting multiple payment methods improves the driver experience, including:Mobile App;QR code payment;RFID cards;Fleet accounts

Communication Network

Reliable communication equipment—including routers, switches, and industrial networking devices—is essential for maintaining stable data transmission between chargers and the cloud platform.

Driver Facilities

Providing additional services can significantly enhance customer satisfaction.

Recommended facilities include:Driver lounge;Restrooms;Air conditioning;Drinking water;Seating areas;High-mast lighting

A better charging experience encourages repeat usage.

4. Project Approvals & Professional Engineering

Hardware alone cannot complete a charging station project.

Professional engineering services and regulatory approvals are equally critical.

Required Permits

Typical approvals include:Land use permits;Construction permits;Utility grid connection approval;Environmental impact assessment;Safety assessment

Among these, grid connection approval is often the most time-consuming process and should begin as early as possible.

Engineering Design & Construction

Professional engineering teams should provide:Electrical design;Civil drawings;Construction drawings;Load calculations;Safety compliance

Construction contractors should possess appropriate electrical engineering and civil construction qualifications to ensure quality and safety.

Key Challenges When Building a Heavy-Duty Charging Station

1. Grid Capacity Is Often the Biggest Bottleneck

Before any construction begins, developers should confirm that the local utility can provide sufficient power capacity.

Transformer installation and grid upgrades often require long approval cycles and substantial investment.

2. Plan for Future Charging Power

Today's 300–400kW chargers may soon be replaced by 600kW+ ultra-fast charging and even megawatt charging systems.

Future-proofing the electrical infrastructure during initial construction can significantly reduce future upgrade costs.

3. Site Selection Determines Long-Term Success

Ideal locations include:Logistics parks;Freight terminals;Ports;Highway service areas;Mining sites;Industrial zones

Easy truck access and efficient traffic flow are critical factors.

4. Budget Planning Matters

Heavy-duty truck charging stations require significantly higher investment than passenger EV stations.

Depending on transformer capacity, charger quantity, and civil construction requirements, total project investment typically ranges from hundreds of thousands to several million US dollars.

Comprehensive financial planning is essential before project launch.

FDEnergy: Your Partner for Heavy-Duty Charging Infrastructure

Building a heavy-duty truck charging station is far more than installing chargers—it's about creating a reliable, scalable, and future-ready energy ecosystem.

At Future Digital Energy (FDEnergy), we provide comprehensive solutions covering:

High-power DC fast chargers (up to 480kW and beyond)

Split charging systems

Energy storage integration

Solar + Storage + Charging solutions

Project customization

Technical consulting

Global deployment support

Whether you're planning a logistics hub, mining operation, fleet charging depot, or public charging network, our engineering team is ready to help you build a charging infrastructure designed for long-term performance and future expansion.

Powering the future of heavy-duty electric transportation starts with the right partner.
